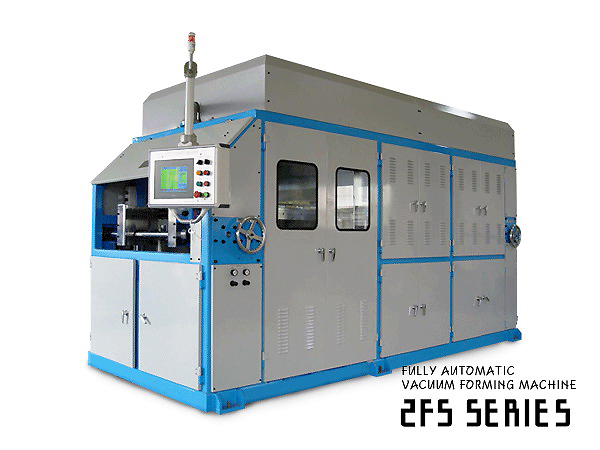

   DK-2F 8100S Series-Fully Automatic Forming Machine (Servo Type)


 These formers offer comfortable circumstances as adopting the AC Servo Motor Drive

 System, departing from the existing hydraulic drive system.

 Metallic patterns can give more precise transfer distance, and have excellent forming

 capacity in speed and noise control.

< Features >
1. All the action of machinery can be operated with GP touch screen.

2. Possible to transfer metallic patterns accurately, for Servo Drive System is adopted.
3. Able to carry out precise and complex forming.
4. Individual or local heat data values can be input, saved, and fetched with the    computerized thermal control system, which is convenient when the same work is    conducted.

5. Able to shorten preheating time by using a ceramic hollow heater.
6. The heater rises in forming error to prevent sheet from destruction by fire
7. AC Servo Motor Drive System as a sheet transfer system can transfer as accurately    as it is asked



(+)Zoom


Model    DK-2F 8100S (Servo Type)
Production items    disposable(cups, trays, vessels, egg trays, lunch boxs, packing containers)
Size    4160mm(L) X 2100mm(W) X 2516(H)
Weight    4.5 TON
Forming Materials    HIPS,ABS,PE,PP,PVC,PET,GPPS
Forming Area    800 X 1000 mm
Forming Depth    150mm/Max.
Sheet Thickness    0.2~1.5T
Vacuum Pump    5.5HP 4000L/min
Sheet Transfer Motor    Ac Servo Motor 5 kw
Forming Press    Ac Servo Motor (5kw*2) 10 kw
Forming Speed    Max. 20 Cycle/min
